Using a “Fence” or Planar Element to Clip a .dgn Drawing for PDF Export

Meeting the ODA member requests, the ability to clip a .dgn drawing during export to a .pdf file was made available.

Before you export a .dgn file to a .pdf file, set a clipping area, and the resulting .pdf file will include only those elements (or parts of elements if the trimming border passes through it) that are inside the clipping area. A clipping area can have a free shape, but a closed planar element such as a shape, circle, ellipse, or complex shape should be used to specify the boundaries of a clipping area.

So. Let's use the OdaDgnApp example application to examine step-by-step how to execute a “fence” clipping for exporting to a .pdf file.

Run the example application and open the .dgn file that you want to export to a .pdf file and render with one of the rendering devices provided with Teigha.

Choose either of the two icons in the toolbar for “fence” clipping to set a clipping shape.

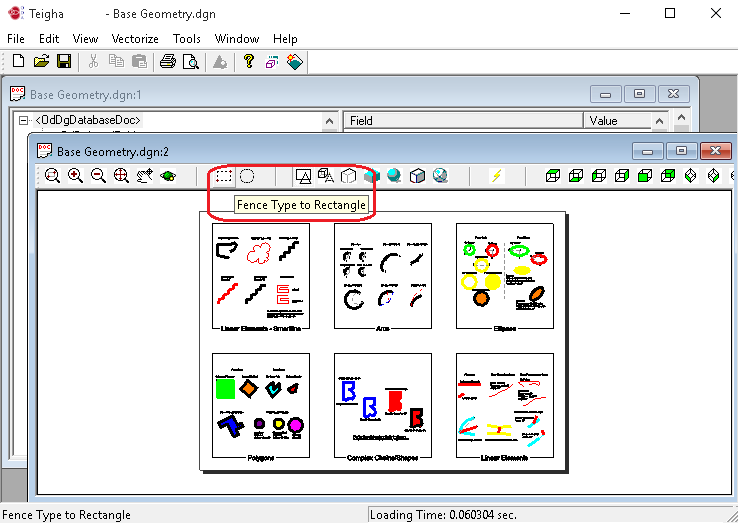

The first case sets a rectangle clipping area (actually it will be a shape element). Click “Fence Type to Rectangle”:

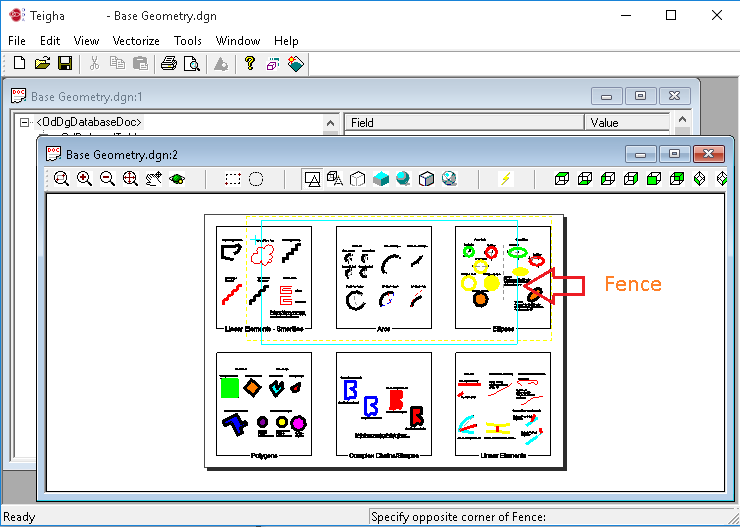

Next, specify the rectangle corners of the fence:

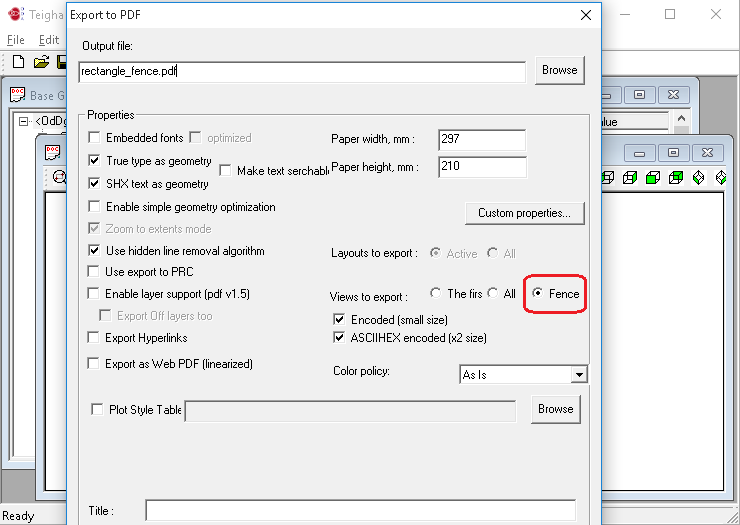

Next, choose File -> Export To PDF. And turn on the “Fence” option in the Export To PDF settings:

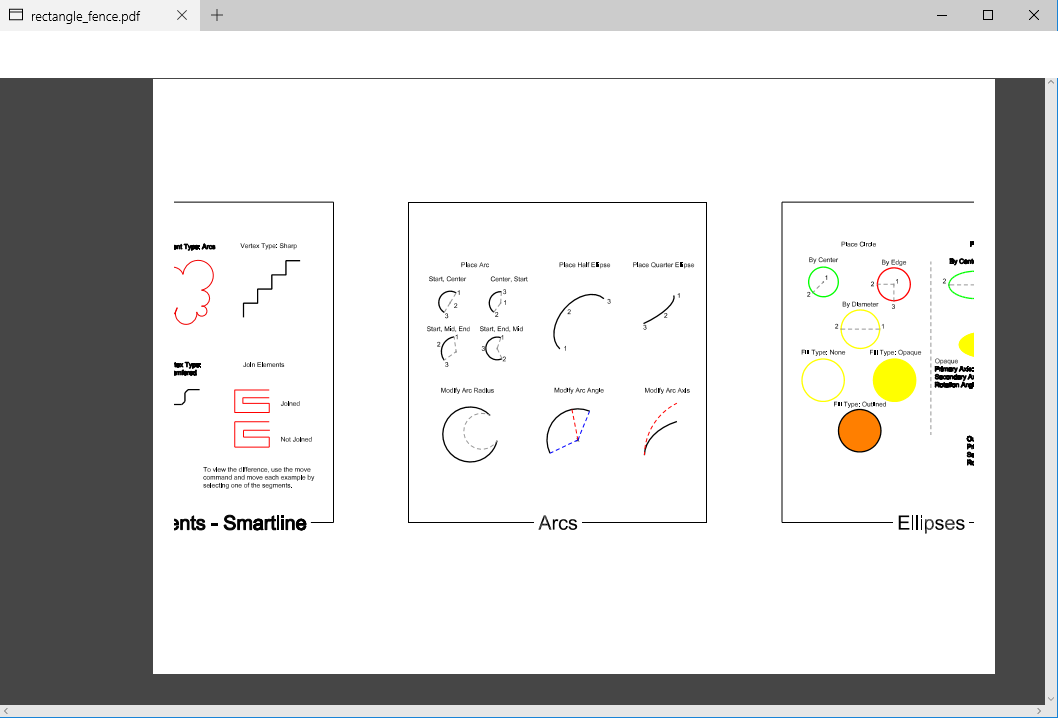

Run the export and get the result:

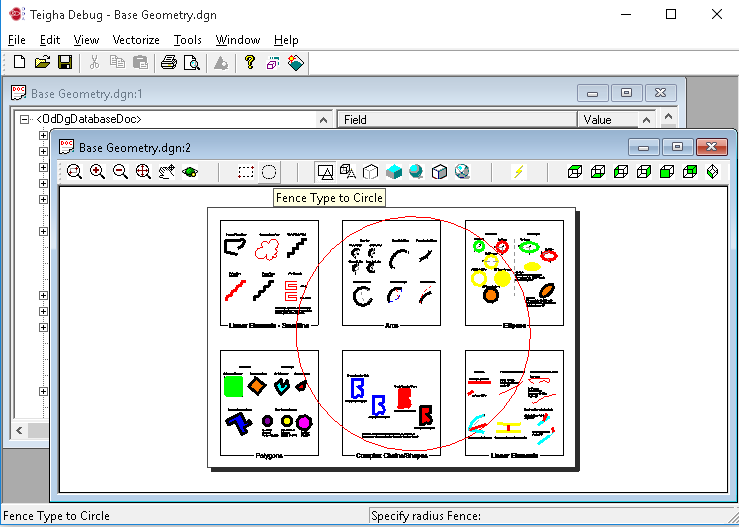

The same action can be done for the second case when setting a circle clipping area. Click “Fence Type to Circle”:

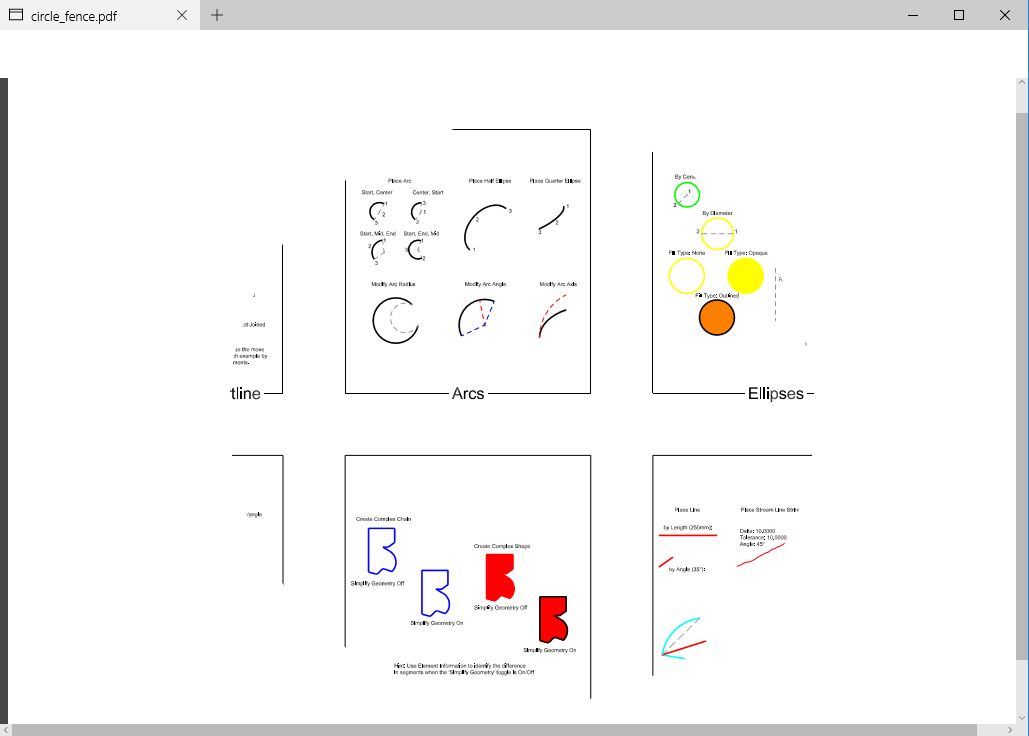

The result is the following when exporting to a .pdf file:

Done!

Now let’s see more about the implementation in OdaDgnApp.

The “Fence” command with arguments is declared to implement this feature. It is a specific class inherited from the OdEdCommand class. See OdaDgnAppDoc.h:

class Cmd_Fence : public OdEdCommand
{
public:
  const OdString groupName() const;
  const OdString globalName() const;
  void execute(OdEdCommandContext* pCmdCtx);
};

The command is added to the OdEdCommandStack list.

See OdaDgnAppVectorizer.cpp for the binding UI with a command execution:

ON_COMMAND(ID_CREATEFENCE_BTN, OnCreateFence)
ON_COMMAND(ID_CREATEFENCE_CIRCLE, OnCreateFenceCircle)

. . . . .

void COdaDgnAppVectorizer::OnCreateFence()
{
  GetDocument()->ExecuteCommand( OD_T("Fence r") );
}
void COdaDgnAppVectorizer::OnCreateFenceCircle()
{
  GetDocument()->ExecuteCommand( OD_T("Fence c") );
}

Then go to OdaDgnAppDoc.cpp where the command is processed:

void COdaDgnAppDoc::ExecuteCommand(const OdString& sCmd, bool bEcho)
{
  . . . . .
  pCommands->executeCommand(s, pCmdCtx);

  if( s == OD_T("FENCE") )
  {
    OdValuePtr pHandle = pCmdCtx->arbitraryData(OD_T("Fence"));
    if( !m_idFence.isNull() && !pHandle.isNull() )
    {
      OdDgElementPtr pFence = m_idFence.openObject(OdDg::kForWrite);
      if( !pFence.isNull() )
      {
        pFence->erase(true);
      }
    }
    if( !pHandle.isNull() )
    {
      OdInt64 uHandle = 0;
      pHandle->get(uHandle);
      m_idFence = m_pDb->getElementId( OdDbHandle((OdUInt64)uHandle));
    }
  }
  . . . . .
}

After the command is successfully executed, a specific element for clipping is assigned. Its m_idFence is set, and then .pdf export will use it for clipping. The executeCommand() itself should call proper execution for the fence command. As a result, Cmd_Fence::execute() should be run. Inside this call a clipping area specification should be done:

void Cmd_Fence::execute(OdEdCommandContext* pCmdCtx)
{
  . . . . .
  try
  {
    pt1 = pIO->getPoint(L"Specify corner of window, enter a scale factor (nX or nXP), or\n"
                        L"[Rectangle/Circle] <real time>:",
    OdEd::kInpThrowEmpty|OdEd::kInpThrowOther|OdEd::kGptNoOSnap, 0, szKeywords);

    pt1 = pIO->getPoint(OD_T("Specify corner of Fence:"),OdEd::kInpThrowEmpty  | OdEd::kGptNoOSnap);
    pt2 = pIO->getPoint(OD_T("Specify opposite corner of Fence:"), OdEd::kGptNoUCS | OdEd::kGptRectFrame | OdEd::kGptNoOSnap);

    create_Fence(pt1, pt2, pView, pDgView->getModelId(), pCmdCtx, false );
  }
  . . . . .
  catch(const OdEdKeyword& kw)
  {
    switch(kw.keywordIndex())
    {
          case 0: // Rectangle clipping area
            pt1 = pIO->getPoint(OD_T("Specify corner of Fence:"),OdEd::kInpThrowEmpty  | OdEd::kGptNoOSnap);
            pt2 = pIO->getPoint(OD_T("Specify opposite corner of Fence:"), OdEd::kGptNoUCS | OdEd::kGptRectFrame | OdEd::kGptNoOSnap);

            create_Fence(pt1, pt2, pView, pDgView->getModelId(), pCmdCtx, false );
            break;
          case 1: // Circle clipping area
            pt1 = pIO->getPoint(OD_T("Specify center of Fence:"),OdEd::kInpThrowEmpty  | OdEd::kGptNoOSnap);
            pt2 = pIO->getPoint(OD_T("Specify radius Fence:"), OdEd::kGptNoUCS | OdEd::kGptRectFrame | OdEd::kGptNoOSnap);

            create_Fence(pt1, pt2, pView, pDgView->getModelId(), pCmdCtx, true );
            break;
    }
  }
  . . . . .
}

The create_Fence() method creates a proper element for clipping according to the chosen fence command mode. It will be OdDgEllipse3d in the case of a circle clipping boundary and OdDgLineString3dPtr in the case of a rectangle one.

And finally to assign this element as a volume clipping element for exporting to .pdf, see ExportToPDFDialog.cpp:

OdUInt32 CExport2PDFDialog::ExportToPdf(OdString pdfFileName)
{
  OdPdfExportModulePtr pModule = ::odrxDynamicLinker()->loadApp(OdPdfExportModuleName);
  {
    OdPdfExportPtr exporter = pModule->create();
    {
      PDFExportParams params;
      . . . . .
      // Use fence for pdf exporting to clip the drawing
      if( m_Views == 2 && !m_idFence.isNull() )
      {
        idView = getActiveViewId(m_pDb); // Get active view.
        . . . . .
        if( !idView.isNull() )
        {
           . . . . .
          pView->setVolumeClipElementId( m_idFence ); // Set fence as volume clip element
          . . . . .
         }
      }
    }
  }
}

This allows you to set and implement your own clipping boundary to trim a DGN drawing for export to a .pdf file.
