For All Teigha Trial Versions Except TeighaX

  1. Start the command prompt. (Choose Start > Run, type “cmd”, and press Enter.)
  2. Change directories to the location of LicenseMgrApp.exe in your Teigha trial folder. For example, if you downloaded a trial version built with Visual Studio 2012 and unpacked it to C:\Teigha\Trial, use the command: cd C:\Teigha\Trial\exe\vc11dll.
  3. Because applications based on Teigha trial versions are restricted to running on a single computer, generate a hardware ID for your computer:

    LicenseMgrApp.exe -c getHardwareID

    The generated hardware ID displays in the window:

  4. Log in at: https://manage.opendesign.com/manage-license-keys
  5. On the License Key Management page, generate a license key for Teigha Core, which is required for evaluation of all Teigha products:
    • Select Teigha Core from the list.
    • Enter the hardware ID that you obtained previously.
    • Click Generate Key.
  6. Generate license keys for other Teigha products you want to evaluate.

    NOTE: Teigha.NET, Teigha.NET Classic and Teigha PRC.NET use Teigha Core key and don’t need key generation.

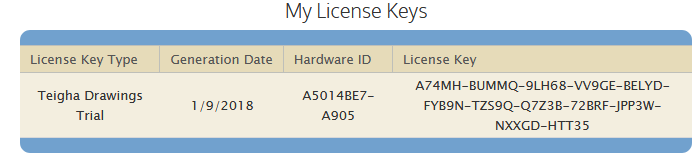

  7. Highlight a generated license key and copy it to the clipboard.

    If a license key was not generated, an error message displays. For help resolving the issue, see the Trial Forum for contact information.

  8. Return to the command prompt and enter the following:

    LicenseMgrApp.exe -c activateLicense -n <user name> -k <activation-key>

    Where <user name> is the username you received from Open Design Alliance and <activation-key> is the license key you copied previously.

  9. Repeat for each license key you obtained.

Teigha trial versions are now ready to use.

For TeighaX Trial Version

If you have an activated Teigha Core trial license on your computer:

  1. Copy TeighaLicense.ini from Teigha trial version folder to one of the following (* is the Teigha version number):
    • C:\Program Files\Common Files\TeighaX * for a 32-bit system.
    • C:\Program Files (x86)\Common Files\TeighaX * for a 64-bit system.

If you don’t have an activated Teigha Core trial license on your computer:

  1. Copy LicenseManagerApp.exe from one of the following folders (* is the Teigha version number):

    • C:\Program Files\Common Files\TeighaX * for a 32-bit system.
    • C:\Program Files (x86)\Common Files\TeighaX * for a 64-bit system.

    And place the file in any other folder where it can be run without elevated privileges (for example, a current user folder).

  2. Follow activation steps for Teigha Core in that folder. Upon success, TeighaLicense.ini file is created.
  3. Copy TeighaLicense.ini which was created during the previous step back to (* is the Teigha version number):

    • C:\Program Files\Common Files\TeighaX * for a 32-bit system.
    • C:\Program Files (x86)\Common Files\TeighaX * for a 64-bit system.

TeighaX trial version is now ready to use.
